Equipment identity is uncertain
A repainted cover, missing directory, mixed breaker handles or an unreadable label can make visual screening unreliable. Build the record from safe closed-cover evidence and qualified confirmation.
Canada homeowner planning guide
Old Electrical Panels Canada: Brand & Safety Guide

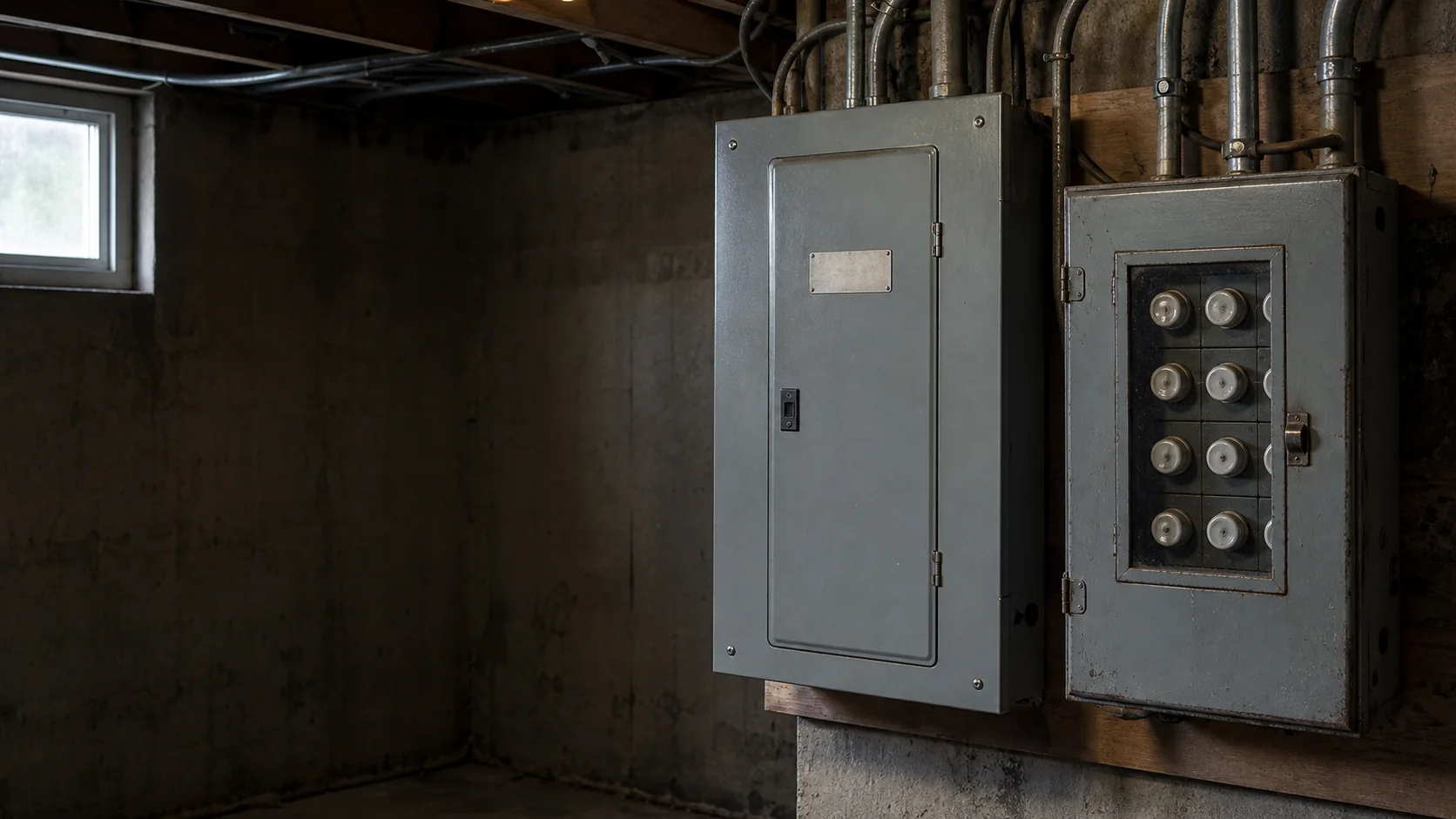

An old electrical panel should be assessed by exact equipment identity and present evidence, not by age, handle colour or a generic dangerous-brand list alone. Record the enclosure, interior or bus, main and branch breakers or fuses, ratings, approval marks, substitutions, alterations, heat, corrosion, water, damage, conductor protection, service rating and available approved parts. Then check exact models and date codes against current Canadian recall and authority records and obtain any insurer requirement in writing. Fuse panels, Federal Pacific or Federal Pioneer Stab-Lok equipment, and Zinsco or Sylvania-labelled panels raise different questions. A supported recommendation can be continued use, focused correction, panel replacement at the same capacity, or a separate service-capacity project.
Safety boundary
Do not remove a panel cover, pull a fuse, disturb breakers, break a meter seal, tighten terminals or create an overload to identify or test old equipment. Smoke, flame, visible arcing, melting, severe heat, shock, strong burning odour, water entry or damaged service conductors can require immediate emergency or utility action.
Short answer
What this project must establish
Canadian electrical requirements are adopted and administered locally. This guide explains the durable planning questions; your province or territory, local authority, serving utility, equipment instructions, and responsible contractor determine the property-specific answer.
Find your jurisdiction guideAge, house era, cabinet shape and handle colour are screening clues; labels, catalogue information, ratings, approval marks and qualified confirmation identify the installed equipment.
Official recall records normally identify specific products, models, production periods or date codes, so a brand name is not a substitute for a current exact-product search.
Technical Safety BC stated in 2026 that it does not require Federal Pioneer or Federal Pacific panel replacement solely by manufacturer and advises considering age, condition, contractor assessment and insurer requirements.
ESA documents particular older fuse-panel shock concerns and specific Stab-Lok breaker recalls; those records should not be generalized to every fuse or every breaker bearing a related name.
Physical breaker fit is not proof of approved compatibility. Technical Safety BC documented an incident involving an incompatible breaker attempted in a Sylvania panel while energized.
Replacing distribution equipment does not automatically increase service capacity; the main protection, meter equipment, service conductors and utility connection define a separate service-rating decision.
Project triggers
Situations that change the scope
Fuse panel or cartridge fuses remain
Identify enclosure design, fuse type and rating, conductor protection, exposed-part risk, adapters, bypasses, additions, available parts, service rating and insurer requirements before recommending conversion.
Federal Pioneer, Federal Pacific or Stab-Lok
Match exact panel and breaker models and date codes to official records, preserve the limits of the CPSC investigation and current Canadian guidance, and connect the remedy to property condition and compatibility.
Zinsco or Sylvania label
Confirm the exact product family because Sylvania branding covered different equipment. Review bus and breaker compatibility, condition, alterations, parts, recalls, local acceptance and insurer wording.
Insurance, sale or financing review
Ask the actual third party for the equipment concern, accepted provider, inspection boundary, remedy, deadline and final documents in writing before ordering work.
Renovation or electrification project
EV charging, heat pumps, suites, solar, batteries, electric water heating or additions create a separate circuit and capacity case that should be coordinated without treating panel age as the load calculation.
Decision guide
Resolve the design choices before pricing
A defensible quote connects the existing condition and calculated demand to the proposed correction. It also separates contractor work, authority approval, and utility-owned scope.
01
What exact equipment is installed?
Record enclosure, interior or bus, main protection, every breaker or fuse family, ratings, approval information, service size, substitutions, adapters and modifications before applying product-specific guidance.
02
What does current official evidence cover?
Search federal and provincial recalls by exact manufacturer, model and date code, read investigation and authority records within their stated scope, and record source access dates.
03
What is the present condition?
Tie the recommendation to heat, discolouration, melting, corrosion, water, contamination, bus or enclosure damage, breaker engagement, wrong fusing, conductor protection, terminations and alterations.
04
Can focused correction be supported?
A breaker, fuse, connection or enclosure correction depends on approved compatibility, suitable parts, retained-equipment condition, local acceptance and whether it resolves the insurer or project finding.
05
Is replacement panel-only or a service change?
State whether the service rating, meter socket, main protection, conductors, mast or underground route, grounding, utility connection and building restoration remain or change.
06
What evidence closes the decision?
Define the inspection report, recall check, permit and inspection outcome, equipment schedule, circuit directory, service rating, corrected findings, tests, photos, insurer submission, warranty and invoice.
What changes the project cost
A Canada-wide installed price is not a substitute for a site-specific scope. Compare the same equipment, responsibilities, exclusions, and closeout standard.
Identification and reporting
Label research, model and recall checks, defined inspection scope, photographs, insurer forms, load evidence, written findings and return visits.
Panel, fuses and breakers
Enclosure, interior, main protection, branch breakers or fuses, specialty protection, surge, disconnects, approved accessories, spaces, labels and product availability.
Condition and circuit corrections
Damaged bus or conductors, wrong fusing, unsupported breakers, short conductors, poor alterations, grounding, bonding, branch-circuit defects and directory accuracy.
Panel versus service boundary
Same-capacity replacement differs from meter, main protection, service conductors, overhead mast or underground route, grounding, utility design and connection changes.
Permit, utility and outage
Authority fees, utility isolation, reconnect prerequisites, temporary power, owner-direct charges, correction visits and delayed-restoration contingency.
Access and building restoration
Working-space correction, cabinetry, drywall, fire separation, siding, roofing, trenching, hazardous materials, tenant coordination and agreed finishes.
A jurisdiction-ready project sequence
Do not schedule around an assumed installation day until equipment, permits, utility work, inspection, outage, and restoration dependencies are known.
- STEP 1
Collect safe identification evidence
From outside closed equipment, record labels, ratings, visible breaker or fuse markings, directory, symptoms, service information, renovation history, prior reports and the reason for assessment.
- STEP 2
Define the assessment boundary
Specify whether the work covers identification only, panel and breakers or fuses, connected circuits, branch wiring, service equipment, capacity, insurer reporting or a complete replacement design.
- STEP 3
Check current official records
Search current Canadian recalls and safety alerts for exact models and date codes, review applicable authority guidance, approval information and manufacturer documentation, and preserve the source dates.
- STEP 4
Complete qualified condition review
Have the eligible contractor document equipment identity, compatibility, heat, moisture, corrosion, damage, modifications, conductors, terminations, grounding, bonding and connected findings within the agreed scope.
- STEP 5
Evaluate loads separately
When new equipment is planned, complete the locally accepted capacity evidence and compare same-capacity replacement, circuit changes, approved load management or a true service increase.
- STEP 6
Compare normalized proposals
Use one defined equipment package and compare retained items, circuits, service and utility work, permits, outage, deficiencies, restoration, exclusions, allowances, warranty and change-order terms.
- STEP 7
Inspect and preserve closeout evidence
Complete required authority and utility steps before energization, verify labels and circuits, and retain the final equipment, service, permit, inspection, test, photo, insurer, warranty and invoice records.
Questions every written quote should answer
- What exact enclosure, interior or bus, main, breaker or fuse models, ratings and approval markings did you identify?
- Which current Canadian recall, safety-alert, authority and manufacturer records did you check, and on what date?
- Which observed condition, compatibility issue, wrong protection, part limitation or written requirement supports each proposed item?
- Can any existing equipment remain, and what approved compatibility, condition evidence and local acceptance support retaining it?
- Does the proposal replace distribution equipment at the same capacity or change the electrical service rating?
- Which meter, main, conductors, mast or underground route, grounding, utility and outage work is included?
- Which connected wiring, circuit defects, protection changes, labels and tests are included or excluded?
- Who obtains permits, inspection, utility coordination and insurer acceptance, and who corrects a deficiency?
- What wall, cabinet, siding, roofing, trench, fire-separation or hazardous-material work is included?
- Which identification, equipment, permit, inspection, circuit, service, test, photo, warranty and invoice records will I receive?
Build an auditable project file
Another qualified professional should be able to understand what existed, why the scope changed, who approved it, what was installed, and how the project closed.
Existing condition
Service rating, closed-cover equipment identification, observed condition, symptoms, accessible configuration, and the planned loads or project trigger.
Approved scope
Legal contractor, equipment, circuit and service work, permit holder, inspection, utility responsibilities, restoration, exclusions, and change-order rules.
Installation record
Permit number where required, approved equipment, labelled circuits, documented changes, inspection milestones, and utility instructions where applicable.
Closeout file
Final acceptance or inspection status, equipment information, settings, warranty, utility records, paid invoice, and the responsible contractor's contact details.
Continue researching
Related Canadian guides
Fuse box replacement
Assess fuse type, conductor protection, shock concerns, insurance and conversion scope.
Open guideKnob-and-tube wiring
Map active older circuits and separate wiring, panel, insurer and rewiring decisions.
Open guideFederal Pacific and Stab-Lok
Read the exact CPSC, recall and current Canadian authority evidence.
Open guideZinsco and Sylvania panels
Verify exact product identity, compatibility, condition, recalls and project scope.
Open guideAluminum wiring and panel work
Separate service and feeder conductors from branch-wiring remediation.
Open guideInsurance panel inspection
Translate underwriting wording into accepted inspection and closeout evidence.
Open guideElectrical safety inspection
Define the assessment boundary, tests, limitations and written findings.
Open guideElectrical panel replacement
Build panel, circuit, permit, outage, restoration and closeout scope.
Open guideCircuit breaker replacement
Diagnose trips and verify compatibility before changing protection.
Open guidePanel buzzing or burning smell
Use the urgent response path for heat, odour, arcing, noise and flicker.
Open guidePanel water damage and corrosion
Assess leaks, rust, flooding, equipment disposition and safe re-energization.
Open guideElectrical load calculation
Keep capacity evidence separate from age and equipment identity.
Open guideElectrical service changes
Map meter, conductors, utility, outage and reconnection responsibilities.
Open guidePrimary references
Check current requirements
Forms, code editions, inspection procedures, utility standards, equipment, and incentive programs can change. Verify the current local rule before relying on a project detail.
Government of CanadaSearch recalls, advisories and safety alertsHealth CanadaElectrical product safetyElectrical Safety AuthorityElectrical shock hazards associated with older fuse panelsU.S. Consumer Product Safety CommissionFPE circuit breaker investigation and consumer guidanceTechnical Safety BCCurrent guidance on Federal Pioneer, Federal Pacific and Stab-Lok equipmentElectrical Safety AuthorityStab-Lok product recalls and safety alertsTechnical Safety BCIncompatible breaker and Sylvania panel incident summaryElectrical Safety AuthorityAluminum wiring homeowner guidanceElectrical Safety AuthorityRecognized electrical approval marksInsurance Bureau of CanadaElectrical systems and home-insurance rating questionsElectrical Safety AuthorityHiring a Licensed Electrical ContractorElectrical Safety AuthorityNotifications and inspectionsTechnical Safety BCElectrical installation permits
Canadian questions
Legacy panels, fuses and breaker families FAQ
Is an old electrical panel automatically unsafe?+
No. Age is a maintenance and supportability clue, not a complete diagnosis. Exact equipment, current recalls, approval and compatibility, condition, alterations, available parts, connected wiring, local requirements and insurer evidence determine the decision.
Which electrical panel brands are considered dangerous in Canada?+
There is no responsible universal brand list that decides every installed panel. Fuse equipment, Federal Pacific or Federal Pioneer Stab-Lok, and Zinsco or Sylvania families have different official records and product histories. Identify the exact model and assess the property-specific evidence.
How can I identify an old electrical panel?+
Photograph only the closed-cover manufacturer, series, catalogue, rating and approval labels plus visible breaker or fuse markings. House age, handle colour and online photos can support screening but should not replace qualified confirmation.
Does every fuse box need replacement?+
No universal rule makes every fuse panel an automatic replacement, but enclosure design, exposed-part risk, fuse type and sizing, conductor protection, alterations, available parts, capacity, local requirements and insurer terms can support conversion.
Should every Federal Pioneer or Stab-Lok panel be replaced?+
Current Technical Safety BC guidance does not require replacement solely by manufacturer. Check exact recalls and combine equipment identity, condition, compatibility, parts, local requirements, planned loads and insurer wording.
Should every Zinsco or Sylvania panel be replaced?+
A brand name alone is not a complete diagnosis, and Sylvania branding covered different equipment. Confirm the exact panel and breaker family, compatibility, condition, available parts, current recalls, local acceptance and insurer evidence.
Does normal operation prove an old panel is safe?+
No. Absence of visible trips, heat or damage cannot prove internal condition or how every protective device will perform under future overload or fault conditions. It is one piece of the evidence, not a guarantee.
Can a replacement breaker be used if it fits?+
Physical fit is not proof of approval or compatibility. Verify the exact breaker and panel combination, Canadian approval information, ratings, manufacturer documentation and local acceptance before installation.
Will home insurance cover an old electrical panel?+
Requirements vary by insurer, policy, property and time. Ask for the exact equipment question, accepted provider, inspection boundary, remedy, deadline and final records in writing before assuming approval or refusal.
How old is too old for an electrical panel?+
There is no single Canada-wide age cutoff. Age can affect condition, support, approved-part availability and insurer questions, but the recommendation should be tied to the installed equipment and current evidence.
Does replacing an old panel increase service capacity?+
Not automatically. A same-capacity replacement changes distribution equipment. A larger service requires suitable main protection, meter equipment, conductors, utility connection, accepted load evidence and applicable approvals.
Does service under 100 amps require replacement?+
Not by one national rule, but lower service ratings can affect insurer requirements and planned loads. Verify the actual rating, condition, household demand, future equipment and utility or authority requirements before choosing a project.
How much does old electrical panel replacement cost in Canada?+
Cost depends on equipment, circuit count, defects, same-capacity versus service scope, utility work, permits, outage, access, restoration and required evidence. Compare itemized proposals for the same design.
What should an old-panel replacement quote include?+
Require exact findings and equipment, retained items, breakers or fuses, circuits, service boundary, permit, inspection, utility work, outage, restoration, exclusions, taxes, change orders, warranty and closeout records.
What records should I keep after old panel work?+
Keep identification photos, dated source checks, assessment findings, load evidence when used, equipment schedule, service rating, permits and inspection outcome, circuit directory, tests, corrected findings, insurer submission, warranty and invoice.
