Knob-and-Tube Wiring Guide for Canadian Homes

It is an older open-wiring method that routes separate insulated conductors along framing on porcelain knobs and through framing in porcelain tubes. It was used in many early-1900s residential installations and normally does not provide a modern equipment bonding conductor.

Do not apply one national yes-or-no rule. New work must follow the current requirements adopted for the address. Ontario ESA says new knob-and-tube installation rules were deleted, but its code is not retroactive and existing wiring can remain under defined conditions. Other jurisdictions determine their own treatment of existing installations and alterations.

Not because of the name alone. Condition, protection, loading, alterations, insulation contact, renovation scope, local authority requirements and insurer terms can support maintenance, focused correction, phased replacement or full replacement. Ontario ESA explicitly identifies blanket replacement as a myth while also defining circumstances that require correction.

Its condition cannot be decided from age alone. ESA says properly maintained wiring meeting its defined conditions can remain, while damaged insulation, poor connections, overheating, overfusing, added outlets, mechanical abuse and unsafe alterations require attention. Modern wiring also provides safety and capacity features the older system lacks.

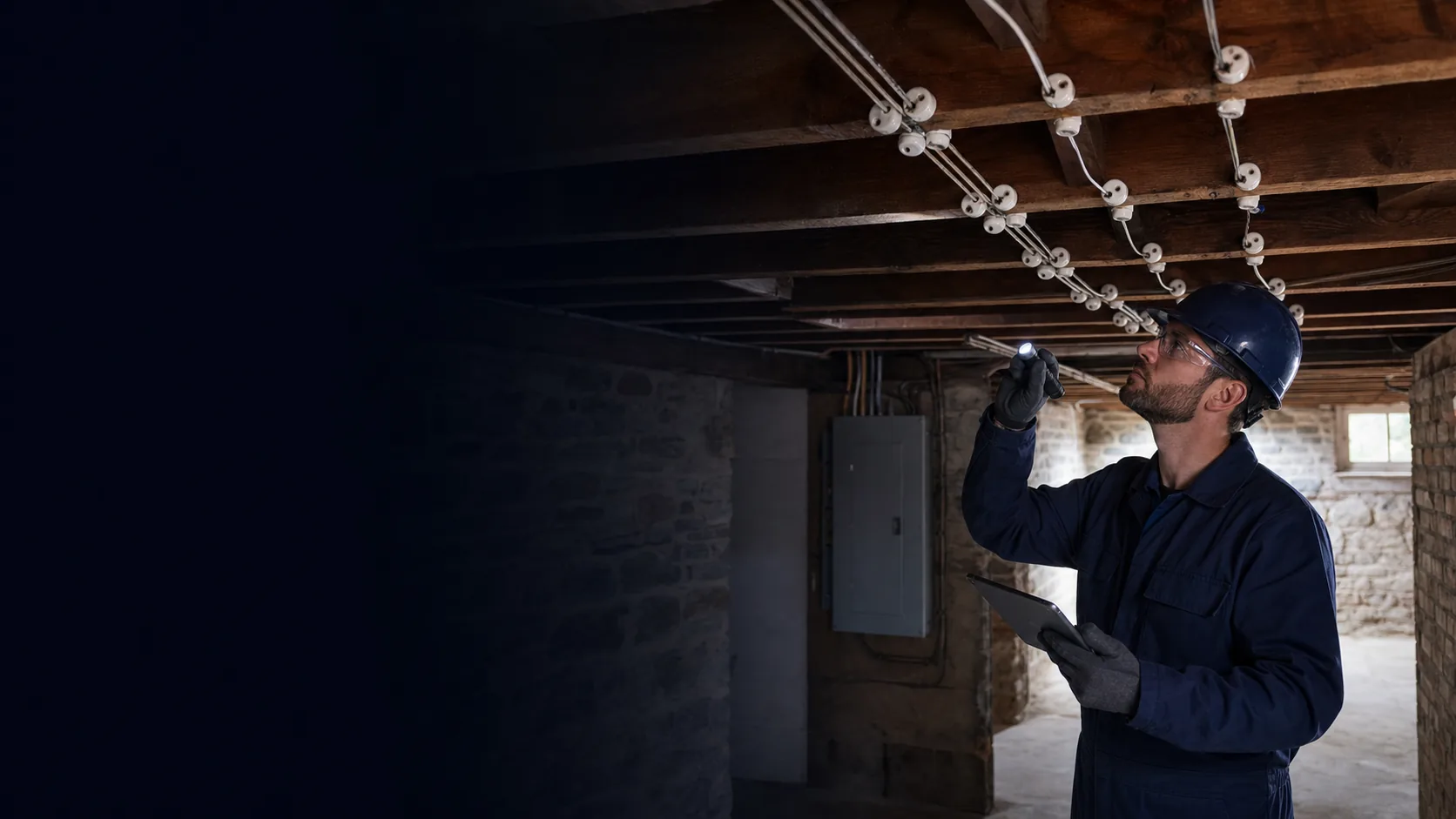

Visible porcelain knobs, tubes or old conductors are clues, not proof of active coverage. A qualified assessment maps protective devices to outlets and lights, traces accessible conductors and transitions, and distinguishes active circuits from abandoned remnants without unsafe homeowner testing or panel access.

Yes. A prior project may have replaced the fuse box or panel while reconnecting existing branch circuits. The modern panel date does not prove the house was rewired, and the old wiring condition does not by itself prove the panel must be replaced.

No. Panel replacement changes distribution equipment and transfers or reconnects circuits. Knob-and-tube conductors in walls and ceilings remain unless the project separately replaces and disconnects those branch circuits.

Possibly, but underwriting varies by insurer, property and evidence. Insurance Bureau of Canada advises contacting the insurer when knob-and-tube is confirmed, and notes some carriers may require updated electrical documentation. Obtain the specific carrier's questions, accepted remedy and deadline in writing.

There is no universal insurer form. Ask whether it requires a licensed electrical contractor or other defined credential, circuit map, condition report, service and panel details, permit history, corrections, inspection acceptance, photos, invoice or full replacement. Commission the report only after the deliverable is clear.

A properly designed GFCI arrangement can provide defined shock protection for certain ungrounded receptacle installations, but it does not create an equipment ground. Labels, downstream wiring, equipment needs and local rules matter, and some devices such as surge protectors may require a real ground reference.

Do not assume. ESA's existing-wiring conditions include that additional outlets have not overloaded the original installation, and its guidance says new outlets follow current wiring requirements. The local authority and qualified provider must define the accepted new circuit or alteration.

Natural Resources Canada warns never to let insulation material contact old knob-and-tube wiring. Before insulating, establish whether the wiring is active and coordinate the accepted electrical correction or replacement, inspection and insulation sequence for the property.

Rewiring, new circuits, panel work and related alterations commonly enter a provincial, territorial or delegated municipal permit or notification process. The authority, eligible permit holder, inspection stages and concealment rules depend on the exact address and scope.

There is no reliable national price without circuit coverage and access evidence. Active circuits, outlets, panel and service work, plaster and finish openings, hazardous materials, insulation, occupancy, permits, inspections and restoration can change the total substantially. Compare itemized scopes, not cost per square foot alone.

Duration depends on mapping, permit and insurer gates, circuit count, access, hazardous-material controls, occupancy, panel or service work, rough-in inspection and restoration. Separate the electrical installation days from assessment, approvals, openings, inspections and finish repair.

No. Wiring replacement and service capacity are separate decisions. Use an accepted load method, current service condition, planned electrification and utility requirements to compare retaining the service, load management or a larger service.

Obtain a focused electrical assessment, insurer response, available permit and renovation records, an itemized remedy and restoration scope, realistic approval timing and transaction advice before waiving conditions. Do not rely only on a panel photo, verbal insurance estimate or generic replacement allowance.

Keep the before-and-after circuit map, final panel directory, exact replaced and disconnected scope, permit and inspection status, equipment and protection records, photos before concealment, hazardous-material and restoration records where applicable, paid invoice, warranty and insurer submission.
